Product Details:
|
| Condition: | New | Operating Weight: | 5750kg |
|---|---|---|---|
| Bucket Capacity: | 0.42 Cbm | Max Digging Radius: | 6460mm |
| Maximum Digging Depth: | 4600mm | Moving Type: | Crawler Excavator |
| After-sales Service Provided: | Video Technical Support | Maximum Digging Height: | 5940mm |
| Machine Weight: | 5750kg,6290mm | Color: | Customize |
| Product Name: | Excavator Telescopic Arm | Keywords: | Excavator Long Reach For Sale |
| Highlight: | Clamshell Telescopic Boom Arm,PC360 Telescopic Boom Arm,Q690D Long Reach Arm |
||

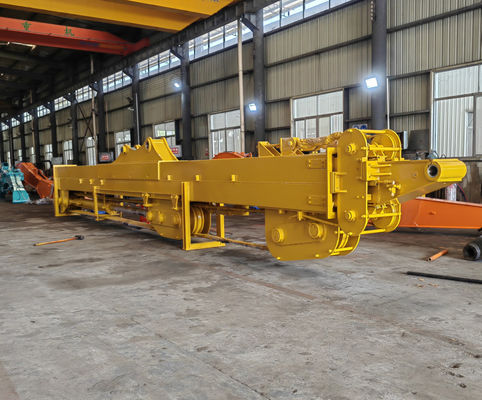

PC360 Long Excavator Clamshell Telescopic Boom Arm extended arm long reach arm
2024 Zhonghe Machinery Catalogue 3M.pdf

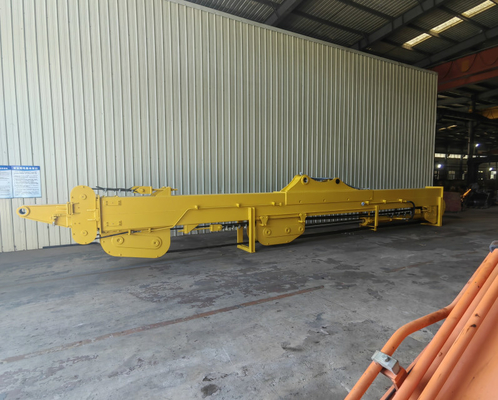

The introduce of extended telescopic arm

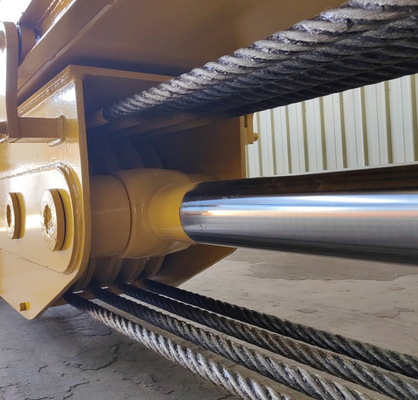

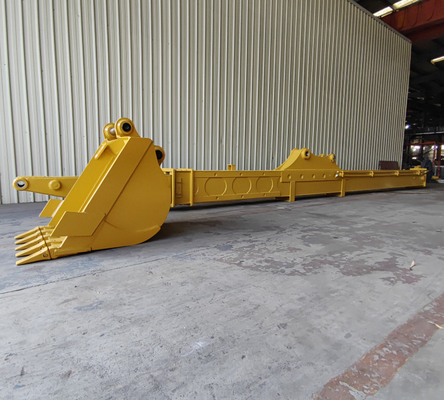

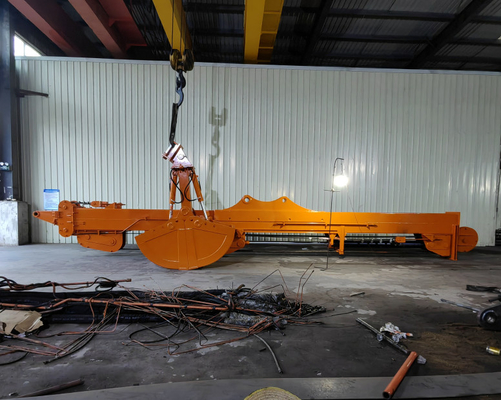

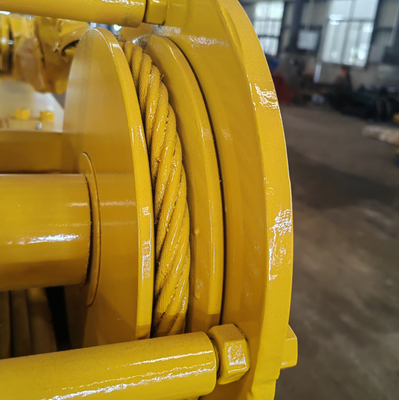

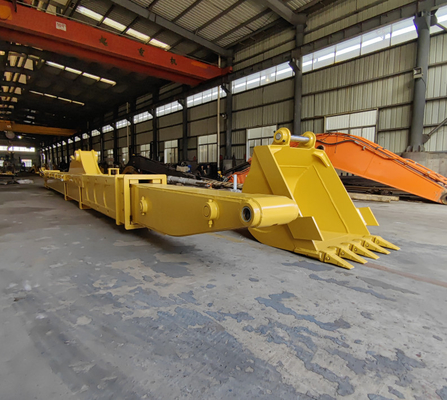

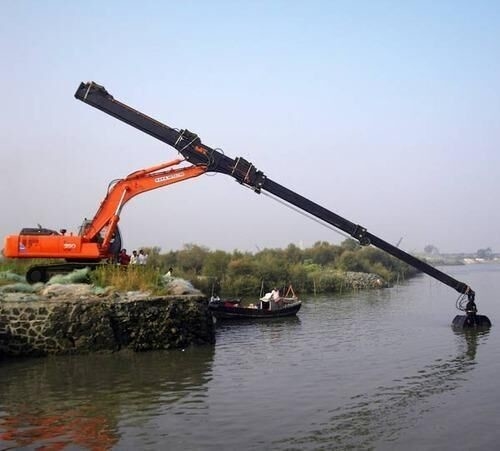

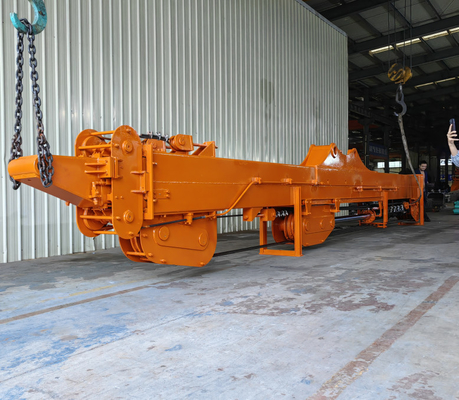

This product mainly consists of a fixed body, sliding body, steel wire rope and a telescopic cylinder. By changing the number of sliding bodies, an ideal working radius and vertical excavation range can be achieved. Generally used in combination with a bucket, it can complete deep pit excavation tasks, such as grabbing soil, sand or coal.
The telescopic arm can be made of Q690D-Q960 material according to the requirements, with much deeper excavation depth, simple and convenient operation, safe and reliable.
Q1: Why not have boom and stick cylinders in the plan?
A1: First, the whole long arm is lengthening, but the boom just lengthening from its middel sleeve to its end, so the original boom and stick cylinder can be used. Second, using the original parts can save your cost.
Q2: How long is the boom arm can min excavator be be configured with? Whether it is necessary to increase the counterweight?
A2. Generally speaking, 30-40 excavator longest arm suggests to be 8 meters, can configure 0.1 cbm bucket, no need extra counterweight. 55 excavator longest arm suggests to be 12 meters, can configure 0.1-0.15 cbm bucket, need 0.5 ton extra counterweight. 60-80 excavator longest arm suggests to be 12 meters, can configure 0.15-0.25 cbm bucket, need 0.5-0.7 ton extra counterweight.
It is not recommended to extend boom arm to longest length as min excavator is easy to sloshing.
Q3: How long will it takes to install a excavator long reach boom?
It depends on the installer and machine size.
Usually disconnect the original boom arm, stick cylinder, then pin the new one is okay.
Kindly remind, prepare several containers to fill the oil before disassemble.
