Product Details:
|
| Condition: | New | Operating Weight: | 5750kg |
|---|---|---|---|
| Bucket Capacity: | 0.42 Cbm | Max Digging Radius: | 6460mm |
| Maximum Digging Depth: | 4600mm | Moving Type: | Crawler Excavator |
| After-sales Service Provided: | Video Technical Support | Maximum Digging Height: | 5940mm |
| Machine Weight: | 5750kg,6290mm | Color: | Customize |
| Product Name: | Excavator Telescopic Arm | Keywords: | Excavator Long Reach For Sale |
| Highlight: | 0.42 cbm Excavator Long Reach Boom,25 Meters Excavator Telescopic Boom,Long Reach Excavator Telescopic Arm |
||

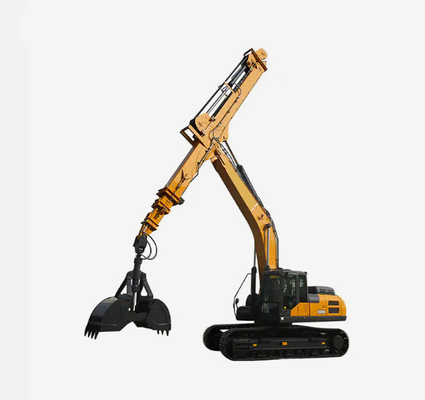

PC360 Long Excavator Clamshell Telescopic Boom Arm extended arm long reach arm
2024 Zhonghe Machinery Catalogue 3M.pdf
The simulated diagram of Telescopic extended arm
Technical Specification
| Type | ZH150 | ZH220 | ZH260 |
| System | Hydraulic cylinder&Wire rope | ||
| Weight | 3.6t | 4.6t | 5.6t |
| Bucket Capacity | 0.3m³ | 0.6m³ | 0.9m³ |
| Max. Digging Depth | 15200mm | 22490mm | 27180mm |
| Max. Digging Radius(Reach Max. Digging Depth) | 4670mm | 5845mm | 6400mm |
| Max.Vertical Digging Radius | 6430mm | 7445mm | 8530mm |
| Max. Digging Depth(Reach Max. Vertical Digging Radius) | 11825mm | 19920mm | 22370mm |
| Max. Operating radius | 7950mm | 9835mm | 11250mm |
| Max. Hoisting Height | 2870mm | 4465mm | 5770mm |
| Min. Operating Radius | 3980mm | 4485mm | 5460mm |
| Max. Operating Height | 9475mm | 13580mm | 16675mm |
| Weight of Bucket | 520Kg | 990Kg | 12390mm |
| Recommended excavator capacity | ≥15 | ≥23t | ≥36t |

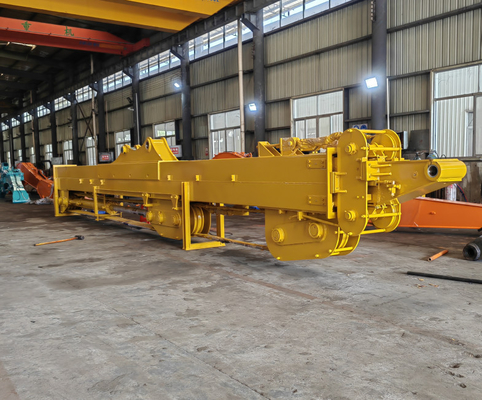

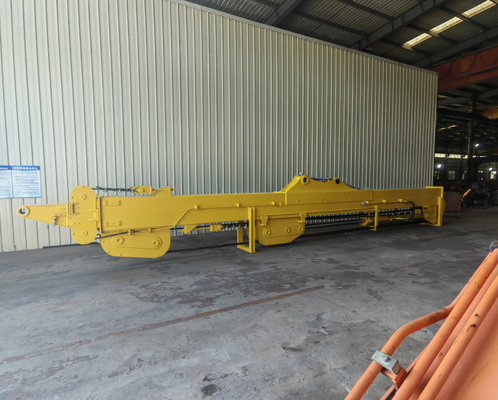

The introduce of extended telescopic arm

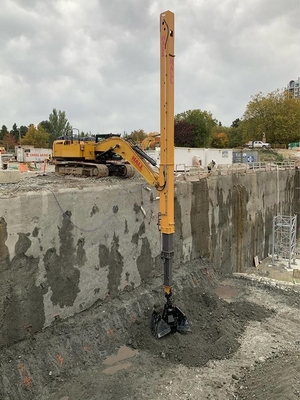

This product mainly consists of a fixed body, sliding body, steel wire rope and a telescopic cylinder. By changing the number of sliding bodies, an ideal working radius and vertical excavation range can be achieved. Generally used in combination with a bucket, it can complete deep pit excavation tasks, such as grabbing soil, sand or coal.
The telescopic arm can be made of Q690D-Q960 material according to the requirements, with much deeper excavation depth, simple and convenient operation, safe and reliable.
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 7 counstries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
FAQ
Q1: What is the Warranty of theClamshell Telescopic Arm?
The warranty period is one year
Please contact with Sophia for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
