Product Details:
|
| Condition: | New | Operating Weight: | 5750kg |
|---|---|---|---|
| Bucket Capacity: | 0.42 Cbm | Max Digging Radius: | 6460mm |
| Maximum Digging Depth: | 4600mm | Moving Type: | Crawler Excavator |
| After-sales Service Provided: | Video Technical Support | Maximum Digging Height: | 5940mm |
| Machine Weight: | 5750kg,6290mm | Color: | Customize |
| Product Name: | Excavator Telescopic Arm | Keywords: | Excavator Long Reach For Sale |
| Highlight: | Super Long Excavator Telescopic Arm,35 Tons Excavator Telescopic Arm,Extendable Excavator Telescopic Boom |
||
Super Long Telescopic Extendable Arm for 35 Tons Excavator CAT335
2024 Zhonghe Machinery Catalogue 3M.pdf
The introduce of extended telescopic arm

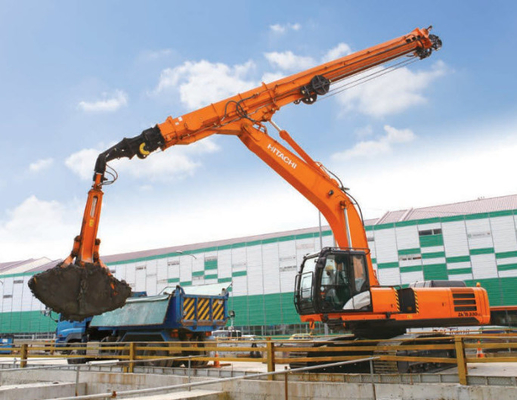

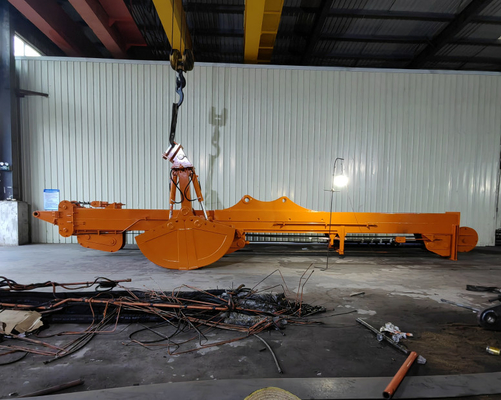

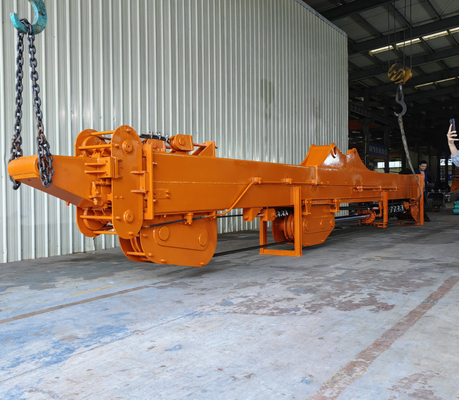

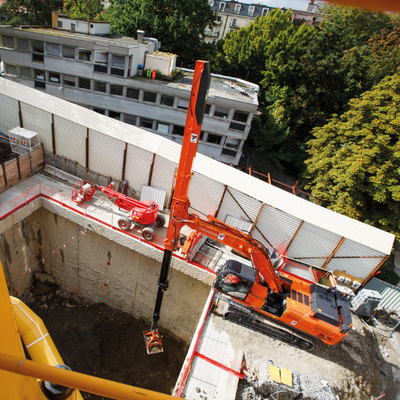

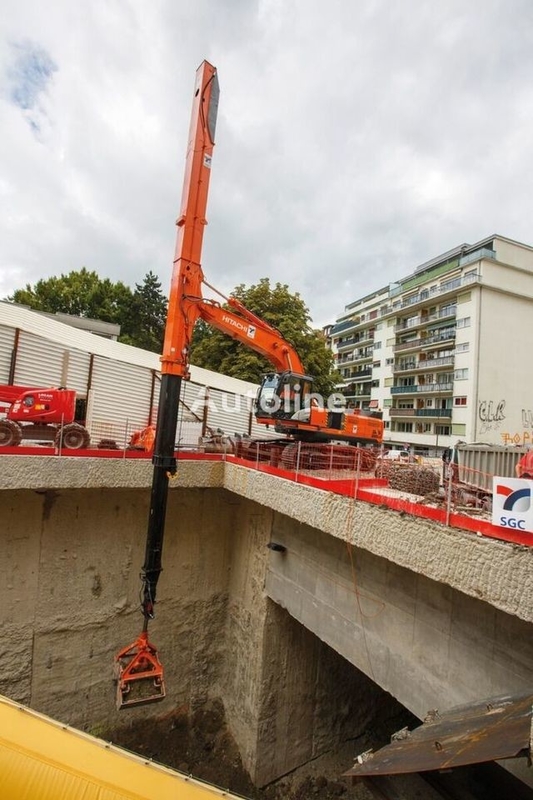

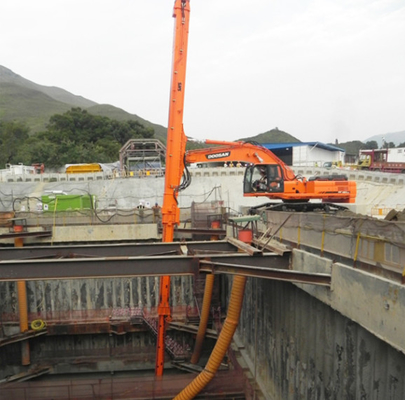

This product is mainly composed of a fixed body, a sliding body and an extendable cylinder. The arm is made of high-strength 700 material. Embedded hydraulic hoses can effectively prevent damage caused by obstacles. It also has a load-extension function, which can work over some obstacles directly. Generally, it carries a bucket to complete deep pit excavation as well as be matched with a clamshell bucket to grab soil, sand, coal, etc.
The simulated diagram of Telescopic extended arm
Technical Specification
| Type | ZH150 | ZH220 | ZH260 |
| System | Hydraulic cylinder&Wire rope | ||
| Weight | 3.6t | 4.6t | 5.6t |
| Bucket Capacity | 0.3m³ | 0.6m³ | 0.9m³ |
| Max. Digging Depth | 15200mm | 22490mm | 27180mm |
| Max. Digging Radius(Reach Max. Digging Depth) | 4670mm | 5845mm | 6400mm |
| Max.Vertical Digging Radius | 6430mm | 7445mm | 8530mm |
| Max. Digging Depth(Reach Max. Vertical Digging Radius) | 11825mm | 19920mm | 22370mm |
| Max. Operating radius | 7950mm | 9835mm | 11250mm |
| Max. Hoisting Height | 2870mm | 4465mm | 5770mm |
| Min. Operating Radius | 3980mm | 4485mm | 5460mm |
| Max. Operating Height | 9475mm | 13580mm | 16675mm |
| Weight of Bucket | 520Kg | 990Kg | 12390mm |
| Recommended excavator capacity | ≥15 | ≥23t | ≥36t |
The introduce of Excavator long reach telescopic arm factory
Established in 2018, Kaiping Zhonghe Machinery Manufacturing Co., Ltd. is a combination of manufacturing and trading, specializing in customizing different kinds of excavator boom arms and attachments. Our products, including excavator long reach booms, demolition arms, 2-3 sections telescopic arms, tunnel arms, standard/rock buckets, grippers, and rippers, have been selling well in more than 40 countries and areas.
We are located in Cuishanhu New District, Kaiping City, Jiangmen City, Guangdong Province, China, and we boast a 18000㎡ steel structure workshop with a large number of high precision processing equipment and a strong and cohesive team of over 100 experienced technical staff, 50 welding workers with over 7 years experience, 30 senior designers, and a high-tech R&D team(10+ years on customization, 100+ technical patents), strict production system (6+ years quality control and cost control) and warm-hearted service team. Our annual output of various types of excavator boom arms can reach up to 600 sets.
Kaiping Zhonghe Machinery Manufacturing Co., Ltd. are committed to providing our customers with products of the highest quality at a moderate price, with quick response and appropriate warranty. We strive to uphold our core principles of "Merit Quality, Sincerity Management, and Customer Satisfaction".
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 7 counstries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
FAQ
Q1: What is the Warranty of theClamshell Telescopic Arm?
The warranty period is one year
Please contact with Sophia for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
