Product Details:
|
| Warranty: | 1 Year For Boom Arrm | Color: | Yellow,Black,Optional |
|---|---|---|---|
| Part Name: | Boom/Arm/Bucket Cylinder | After-sales Service Provided: | 24h Online Support |
| Condition: | 100% Brand New | Bucket Capacity(m3): | 0.6 M³ |
| Bucket Cylinder: | 20 T | Not Included: | Stick Cylinder, Counterweight |
| Highlight: | CAT320 Hitachi Long Reach,Hitachi Long Reach 20m,Practical Sany Long Reach |
||
2024 Zhonghe Machinery Catalogue 3M.pdf
Two-section extendable arms can increase the range of operations without altering the installation and performance of the original excavator. It is mainly applicable to earth and stone engineering, deep trench excavation, river dredging and other operations.
Advantages:
1. Customization according to working conditions.
2. Q355B and Q690D materials are optional
3. Adopt a graphite alloy copper sleeve in boom base.
4. The opening angle of boom and arm can reach 163°, allowing for a greater excavating radius and height.
Use:
It is mainly suitable for earthwork foundation and deep cutting excavation. Applied to municipal works such as
Construction of port
Dredging of river channels
Reservoir cleaning
Subway construction
Excavation of the foundation of a building
Wide range of operation, high efficiency, high safety
Various of Attachment to fit long reach booms: standard digging bucket, mud bucket, skeleton bucket, grapple.

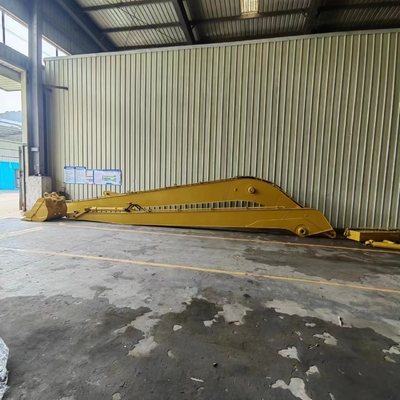

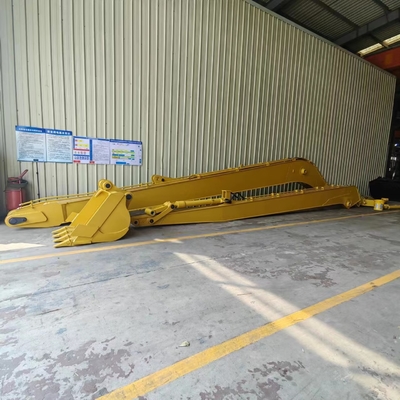

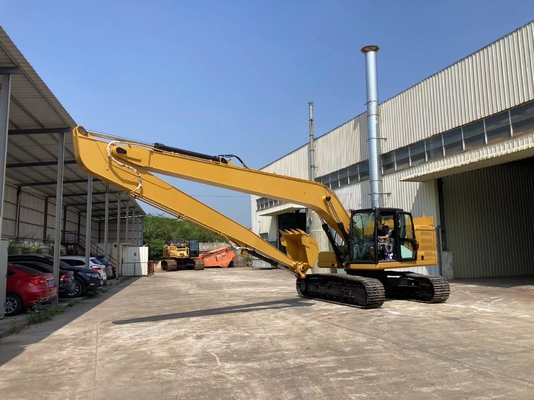

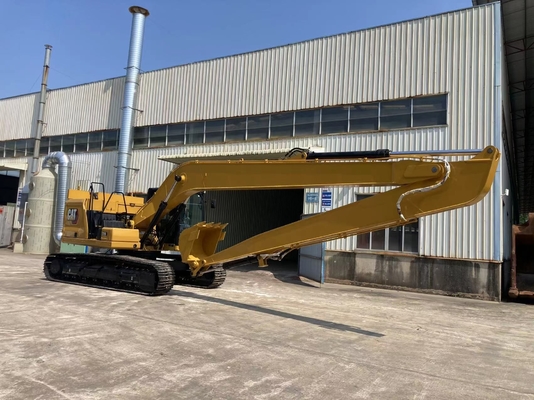

Parameters of 20 meters Excavator Long Reach Boom
| Excavator Weight | 37-39T |
| Total Length(mm) | 20000 |
| Maximum Digging Radius(mm) | 19200 |
| Maximum Digging Depth(mm) | 14900 |
| Maximum Unloading Height(mm) | 12900 |
| Maximum Digging Height(mm) | 15200 |
Long boom arm of excavator's strong points
* High quality with Q355 main material, experienced welding worker and professional R&D team
* Suitable for market brands, or customization
* Max work radius and digging depth & height are larger as 163 degrees of boom and arm angle
Working situation of excavator long boom
municipal engineering, subway building, sand mining, river cleaning and other water conservancy projects.
Attentions
We recommend you use the original arm cylinder to save cost, and counterweight is optional.
Please tell us if you need any other accessaries.

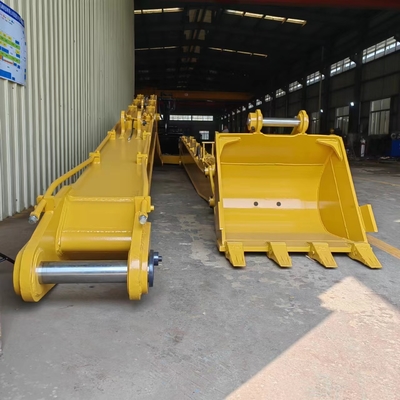

1 boom, 1 arm, 0.6cbm bucket, 20 ton Cylinder, 5 butter hoses, 6 precision seamless steel pipes,
1 linkage assembly, 4 high pressure hoses, 6 pins. All of them are installed together with boom arm.
Notice: Need to use the original arm/stick cylinder, which can reduce the cost for you.
We can also provide one but not for free if needed.
GOOD SERVICE:
1. Online support within 24 hours.
2. Appointment video technical support.
(Our engineers have focused on excavator boom and attachment over 10 years)

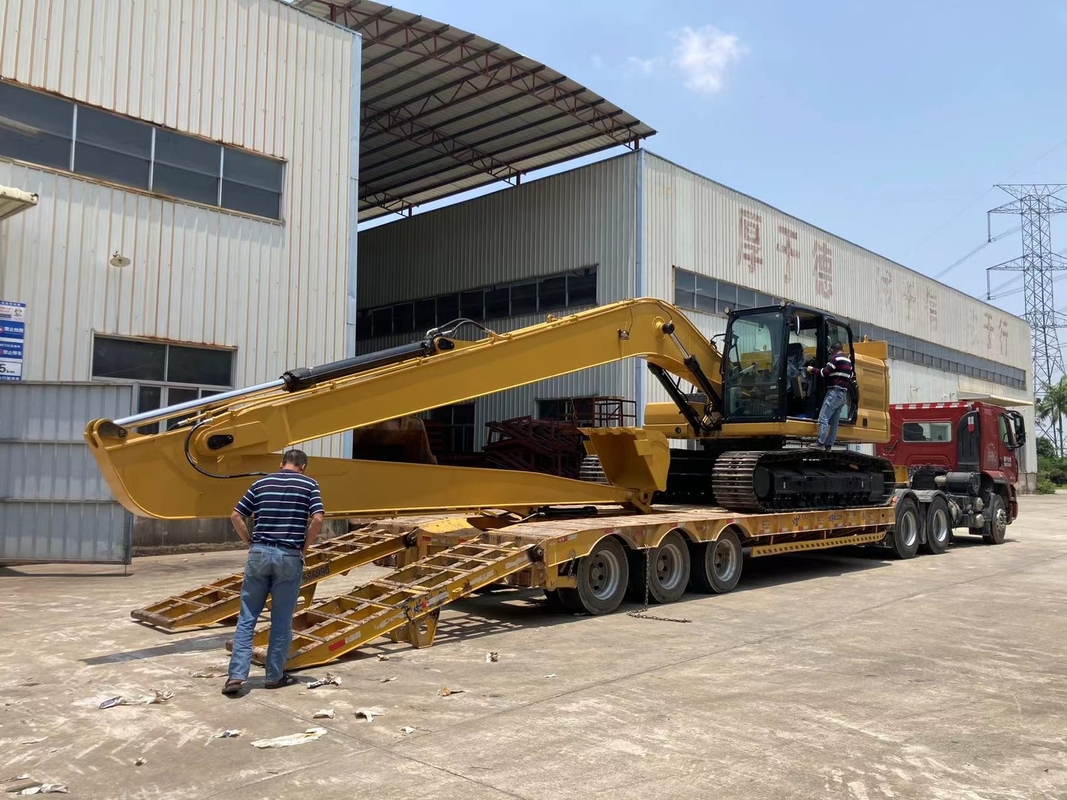

3. Long excavator boom shall be two/three jointed pcs to make it fittable into container to save shipping cost.
WARRANTY
1 year for long reach boom, 180 days for cylinder and linkage, 90 days for bucket.
6. Hydraulic grabs for excavators
Q1: Why not have boom and stick cylinders in the plan?
A1: First, the whole long arm is lengthening, but the boom just lengthening from its middel sleeve to its end, so the original boom and stick cylinder can be used. Second, using the original parts can save your cost.
Q2: How long is the boom arm can min excavator be be configured with? Whether it is necessary to increase the counterweight?
A2. Generally speaking, 30-40 excavator longest arm suggests to be 8 meters, can configure 0.1 cbm bucket, no need extra counterweight. 55 excavator longest arm suggests to be 12 meters, can configure 0.1-0.15 cbm bucket, need 0.5 ton extra counterweight. 60-80 excavator longest arm suggests to be 12 meters, can configure 0.15-0.25 cbm bucket, need 0.5-0.7 ton extra counterweight.
It is not recommended to extend boom arm to longest length as min excavator is easy to sloshing.
