Product Details:
|
| Condition: | New | Operating Weight: | 4T |
|---|---|---|---|
| Bucket Capacity: | 0.4 Cbm | Maximum Digging Depth: | 1400mm |
| Moving Type: | Crawler Excavator | After-sales Service Provided: | Video Technical Support |
| Color: | Customize,Optional | Product Name: | Telescopic Dipper Arm |
| Keywords: | Excavator Telescopic Boom | Material: | Q355B |
| Warranty: | 12 Months | ||
| Highlight: | Clamshell Bucket Excavator Telescopic Boom,China Factory Excavator Telescopic Boom,Long Arm Excavator Telescopic Boom |
||

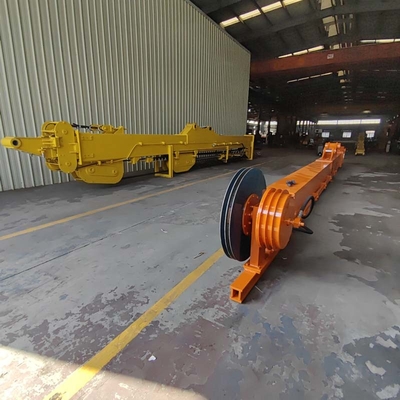

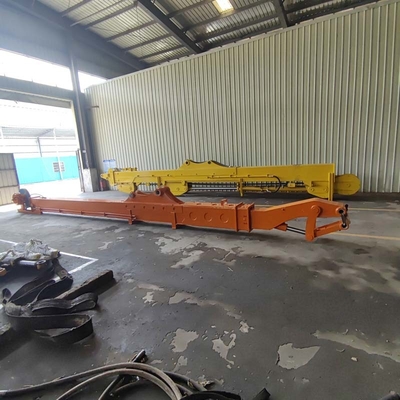

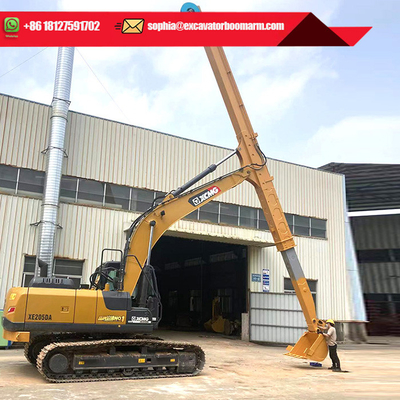

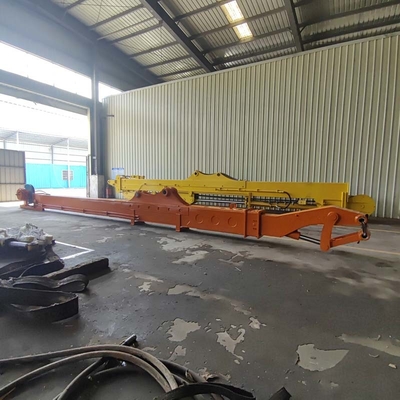

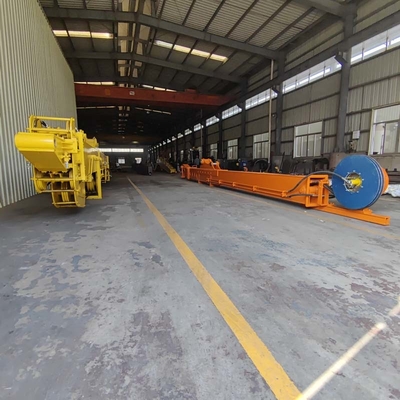

Production Excavator Telescopic Boom with Clamshell Bucket Long Arm Excavator CAT320
2024 Zhonghe Machinery Catalogue 3M.pdf
| Type | ZH150 | ZH220 | ZH260 |
| System | Hydraulic cylinder&Wire rope | ||
| Weight | 3.6t | 4.6t | 5.6t |
| Bucket Capacity | 0.3m³ | 0.6m³ | 0.9m³ |
| Max. Digging Depth | 15200mm | 22490mm | 27180mm |
| Max. Digging Radius(Reach Max. Digging Depth) | 4670mm | 5845mm | 6400mm |
| Max.Vertical Digging Radius | 6430mm | 7445mm | 8530mm |
| Max. Digging Depth(Reach Max. Vertical Digging Radius) | 11825mm | 19920mm | 22370mm |
| Max. Operating radius | 7950mm | 9835mm | 11250mm |
| Max. Hoisting Height | 2870mm | 4465mm | 5770mm |
| Min. Operating Radius | 3980mm | 4485mm | 5460mm |
| Max. Operating Height | 9475mm | 13580mm | 16675mm |
| Weight of Bucket | 520Kg | 990Kg | 12390mm |
| Recommended excavator capacity | ≥15 | ≥23t | ≥36t |
GOOD SERVICE:
1. Online support within 24 hours.
2. Appointment video technical support.
(Our engineers have focused on excavator boom and attachment over 10 years)
3. Long excavator boom shall be two/three jointed pcs to make it fittable into container to save shipping cost.
WARRANTY
1 year for long reach boom, 180 days for cylinder and linkage, 90 days for bucket.
1. We pack the products by pallet or case which is seaworthy.
2. Fast delivery time: 5-7 days for small quantity, and 20-30 days for container quantity.
3. We have a team specialized in packing and loading container, they have rich experience,
and can load the max quantity products, which can help customer save the ocean freight.
