Product Details:
|
| Condition: | Genuine | Color: | Customize,Black/Grey/Yellow/Green |
|---|---|---|---|
| Keywords: | Excavator Pile Driving Arm | Material: | Q345/Q460/NM360)/ Excavator Pile Drive Boom |
| Warranty: | 1 Year | Boom: | 10500mm |
| Arm: | 4500mm | Length: | 15000mm |
| Highlight: | 15m Boom and Arm Pile Driver,Excavator Boom and Arm Pile Driver,39 Ton Excavator Boom Pile Driver |
||
36-39 Ton Excavator High Efficiency 15m Boom and Arm Pile Driver for Excavators for Sany 550 Hyundai455
Any details, welcome to contact Ada
| Contact | Ada |
| Whatsapp/Tel | 0086 15322105263 |
| abby@excavatorboomarm.com |

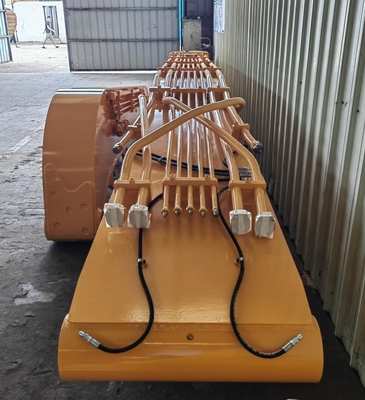

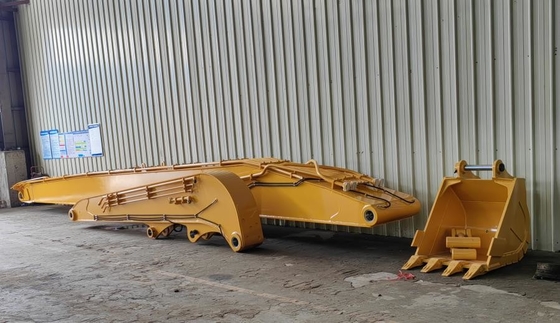

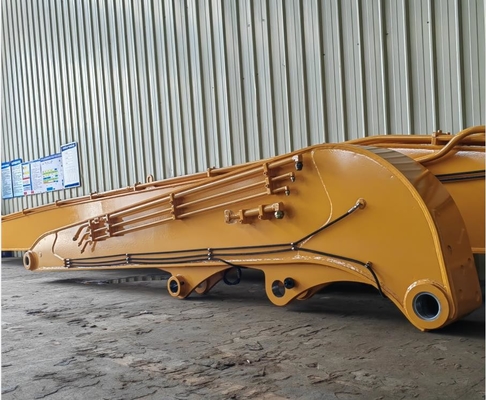

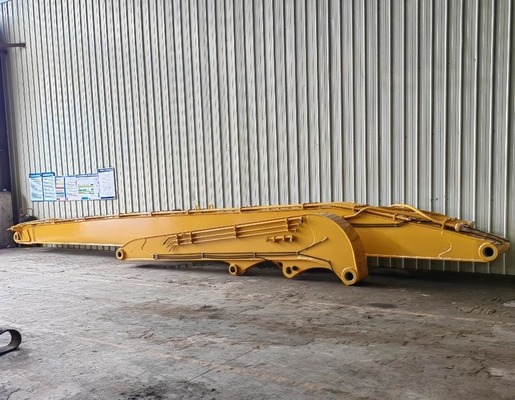

The excavator pile driving arm is specially designed for driving and pulling sheet piles, which is different from the standard arm of the excavator. The pile driving arm is a straight arm, convenient for lifting, and equipped with a short arm. Then, the bending arm of the pile hammer can be connected to the small arm for better control of pile lifting and pressing operations
Warning if you buy our Pile Driving Long Reach Boom Arm for Excavator
All pins and connecting rod assemblies are original, and the high-pressure hoses of the stick cylinder are also original. If you need it, we can provide it.
| Excavator(Ton) | Total Length(mm) | (A)Boom(mm) | (B)Arm(mm) | (C)Piling Height)(mm) | Counterweight(Ton) |
| 30-36T | 13800 | 10000 | 3800 | 15400 | 3T |
| 30-36T | 15000 | 10500 | 4500 | 17100 | 5T |
| 40-45T | 15800 | 11000 | 4800 | 17900 | 3T |
| 40-45T | 16800 | 11500 | 5300 | 18500 | 5T-6T |
| 45-50T | 19000 | 12500 | 6500 | 21000 | 6T-7T |
